Evaporative Air Coolers

We are a leading manufacturer and supplier of Cooling & Ventilation System for industrial, commercial, food & agro industries with a wide range of innovative products like Evaporative air cooling, 24 feet Dia HVLS Fans, air distribution products etc. Evaporative air cooling are completly environment friendly and provide cool, fresh and filtered air at extremely low running cost. We also supply HVLS Fans & Exhaust systems.

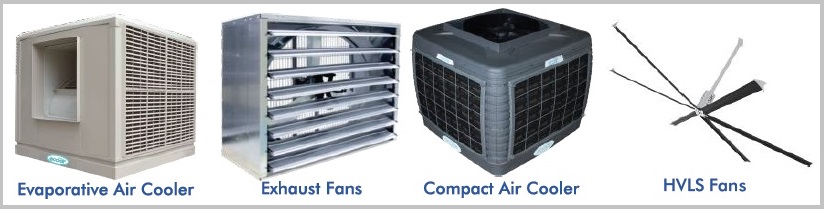

Our products

Key strengths & Advantages of Evaporative Air Cooling Systems

STERNGHTS AND ADVANTAGES
Comfort cooling upto 20 degree centigrate with high airflow Innovative Design and Engineering
Fresh, Filtered, Cool & Oxygen Rich Air Humidity Controller / Temperature Controller
Energy Savings up to 80%Auto Draining & Cleaning / remote control with 16 speeds
Environment Friendly Open Space Cooling
Low CapexFactory Built Modular Contruction for long life
Dust Protection Nylon Mesh

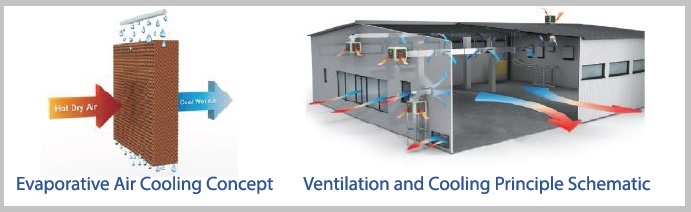

Eco-Air Cooling Concept

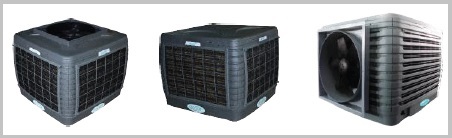

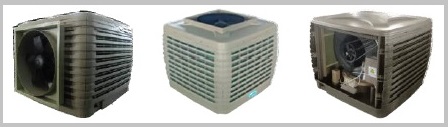

EAC—18 TOP / BOTTOM / SIDE DISCHARGE THREE PHASE
Voltage : SINGLE PHASE, 220V / 50 Hz, THREE PHASE, 380V / 50 Hz
Power Consumption : 1100W
Noise : < 76 dB
Airflow Rate :18000 m3 / h
Water consumption :15-25 L/h
Water Tank Capacity :30 L
Net Weight :85 Kg / 80 Kg
Gross Weight :110 Kg
Physical Size :115 x 115 x 100 cm

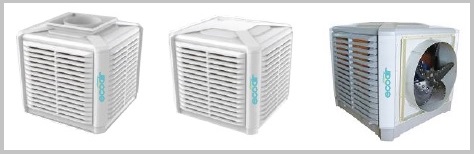

EAC—18 TOP / BOTTOM / SIDE DISCHARGE SINGLE PHASE
Voltage : SINGLE PHASE, 220V / 50 Hz, THREE PHASE, 380V / 50 Hz
Power Consumption : 1100W
Noise : < 76 dB
Airflow Rate :18000 m3 / h
Water consumption :15-25 L/h
Water Tank Capacity :30 L
Net Weight :85 Kg / 80 Kg
Gross Weight :110 Kg
Physical Size :115 x 115 x 100 cm

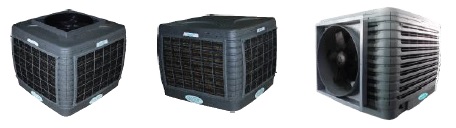

EAC—18 C (Centrifugal) TOP / BOTTOM / SIDE DISCHARGE SINGLE PHASE
Voltage : SINGLE PHASE, 220V / 50 Hz, THREE PHASE, 380V / 50 Hz
Power Consumption : 1100W
Noise : < 76 dB
Airflow Rate :18000 m3 / h
Water consumption :15-25 L/h
Water Tank Capacity :30 L
Net Weight :85 Kg / 80 Kg
Gross Weight :110 Kg
Physical Size :115 x 115 x 100 cm

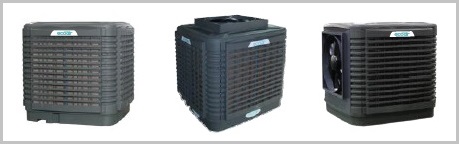

EAC—22 TOP / BOTTOM / SIDE DISCHARGE SINGLE PHASE
Voltage : SIVoltage : SINGLE PHASE, 240V / 50 Hz,
Power Consumption : 1800W
Noise : < 70 dB
Airflow Rate :22000 m3 / h
Water consumption :25-40 L/h
Water Tank Capacity :40 L
Net Weight :85 Kg  Kg
Gross Weight :134 Kg
Physical Size :127 x 127 x 119 cm
EAC—30 TOP / BOTTOM / SIDE DISCHARGE THREE PHASE
Voltage : SINGLE PVoltage : THREE PHASE, 380V / 50 Hz
Power Consumption : 3000W
Noise : < 76 dBte :1800Airflow Rate :30000 m3 / h
Water consumption :15-25 L/h Capacity :30 L
Net Weight :85 Kg Net Weight : 125 Kg
Gross Weight : 125 Kg
Physical Size :115 x 115 x 100 cm

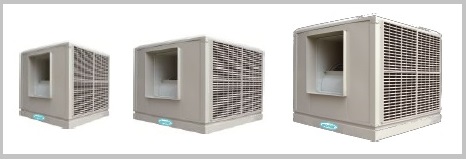

KT 35 B/KT 45 B/KT 60 B (Centrifugal) SIDE DISCHARGE THREE PHASE
Voltage : SINGLE PVoltage : THREE PHASE, 415V / 50 Hz
Power Consumption : 11000W / 13000W/16000W
Noise : < 85 dB
Airflow Rate : 30000/45000/60000 m3 / h
Water Tank Capacity : 80/100/100 L/h
Net Weight : 450/585/650 kg
Gross Weight :110 Kg ize :115Physical Size :180 x 180 x 140 cm
224 x 210 x 185 cm
220 x 100 x 220 x 100 x 180 cm

  Note: Technical Specifications are Subject to Change without Notice
